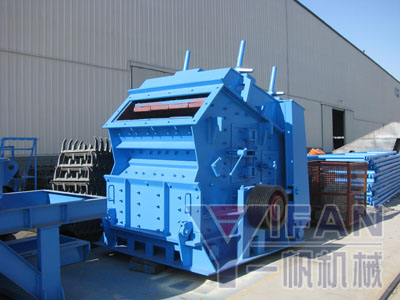

Impact Crusher

Impact Crusher

Impact crusher is mainly used in secondary crushing and crush meterial its compression strength not more than 320 Mpa. It is suitable to produce aggregate for highway, railway, hydroelectric and building material industry ect. Discharge opening size can be adjusted with various particle sizes of crushed material.

Working principle of PF Series Impact Crusher:

The blow bar of rotor shaft is revolved by electric motor through v-belts, and crushing the feeding material,then the crushed material can be thrown to the impact plate,and crushed again,then return to the bars and be crushed for another time. This process will be repeated for several times until the material up to required graininess. The material from the feed opening goes into the first crushing chamber,then the second crushing chamber, lastly, the size of the stone is less than the gap between the blow bar and the impact plate and is discharged from the lower part of machine that is what you want.

Features and Advantages of PF Series Impact Crusher:

[1] Even crushing function of multi-cavities which is suitable to crush hard material.

[2] Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.

[3] Low and big feed opening make the production line easy to arrange and increase the size of feeding material.

[4] Hydraulic open device which is convenient for maintenance and replacement of wear-parts.

[5] New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.

Main Technical Parameter of PF Series Impact Crusher:

Model Rotor Spec(mm) Max Feed Edge(mm) Motor Power(kw) Feed Opening Size(mm) Capacity(t/h) Overall Domensions(L×W×H) (mm) Weight(t)
PF-1007 Φ1000×700 300 37-55 720 x 400 30-50 2370×1540×2630 9.3
PF-1010 Φ1000×1050 300 55-75 1070 x 400 50-80 2400×2250×2630 11.6
PF-1210 Φ1250×1050 350 110-132 465 x 1160 70-120 2640×2370×2890 14.5
PF-1214 Φ1250×1400 350 132-160 465 x 1500 90-160 2640×2720×2890 17.16
PF-1315 Φ1320×1500 500 160-200 990 x 1600 120-200 3510×3040×3020 20.2
