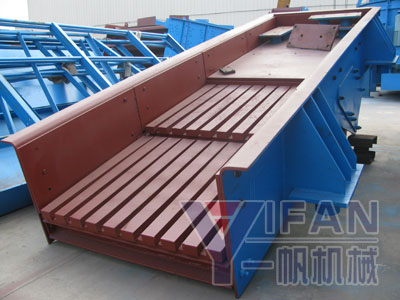

ZSW Series Vibrating Feeder

Vibrating Feeder

ZSW Series Vibrating Feeder is mainly used to feed material into primary crusher evenly and continuously. Meanwhile, it can screen material and strengthen the capacity of the crusher. It adopts double eccentric shaft vibrating characteristic, so ensure it can bear the impact of large material and enhance feed capacity. It puts massive, granular material continuously, timely, evenly into feed devices from storage silo. This prevents feed devices happen system halting phenomenon due to uneven feed, so it extends the equipment life. Feeder can be divided into steel structure and the comb structure, steel structure is mainly used for feeder aggregate production lines,and put materials into the crushing equipment. Comb structure feeder can make a rough screen to the material, make the system in preparation more economic.It becomes a necessary equipment in crushing and screening field. The vibrating feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.


Working principle of ZSW Series Vibrating Feeder:

ZSW Series Vibrating Feeder is composed of feeding channel, exciter, spring support, and gear. vibration exciter is the source of the feeder. Vibrating exciter is composed of two sets of eccentric (drive shaft and driven shaft)and gear wheel. Drive shaft with motor though V-belt, then the upper gear on drive shaft running with driven shaft, drive and driven shaft reverse rotation at the same time, channel vibrating, so material flow contiously and get the purpose of conveying materials.


Features and Advantages of ZSW Series Vibrating Feeder:

[1] Smooth vibration;

[2] Special bar to prevent the block of raw material;

[3] The distance between bars is adjustable;

[4] This series vibrating feeder is reliable operation,low noise,low power consumption, long service life, simple maintenance,light weight, small volume, easy installation, good performance. When adopt closed structure frame, feeder can prevent dust pollution.


Main Technical Parameter of ZSW Series Vibrating Feeder:

Model Max Feed Size (mm) Capacity(t/h) Motor Power(kw) Overall Dimensions(L×W×H)(mm) Size of Funnel(mm) Weight(kg)
ZSW-380×95 500 96-230 11 3882×1620×1209 3800×950 4082
ZSW-490×110   580 120-280 15 4957×1648×1209 4900×1100 5320
ZSW-590×110 600 200-350 22 5957×1648×1365 5900×1100 6130
ZSW-490×130 750 400-560 22 4980×2000×1335 4900×1300 5888
ZSW-600×130 750 400-560 22 6080×2000×1335 6000×1300 7800
ZSW-600×150 1000 460-660 30 6080×2200×1395 6000×1500 9295
ZSW-600×180  1200 500-800 37 6080×2300×1680 6000×1800 12700
ZSW-600×200 1400 600-1000 45 6080×4094×1810 6000×2000 15094
Note:Capacities are relative to physical character and type of feeding,feeding size and composition and so on.
